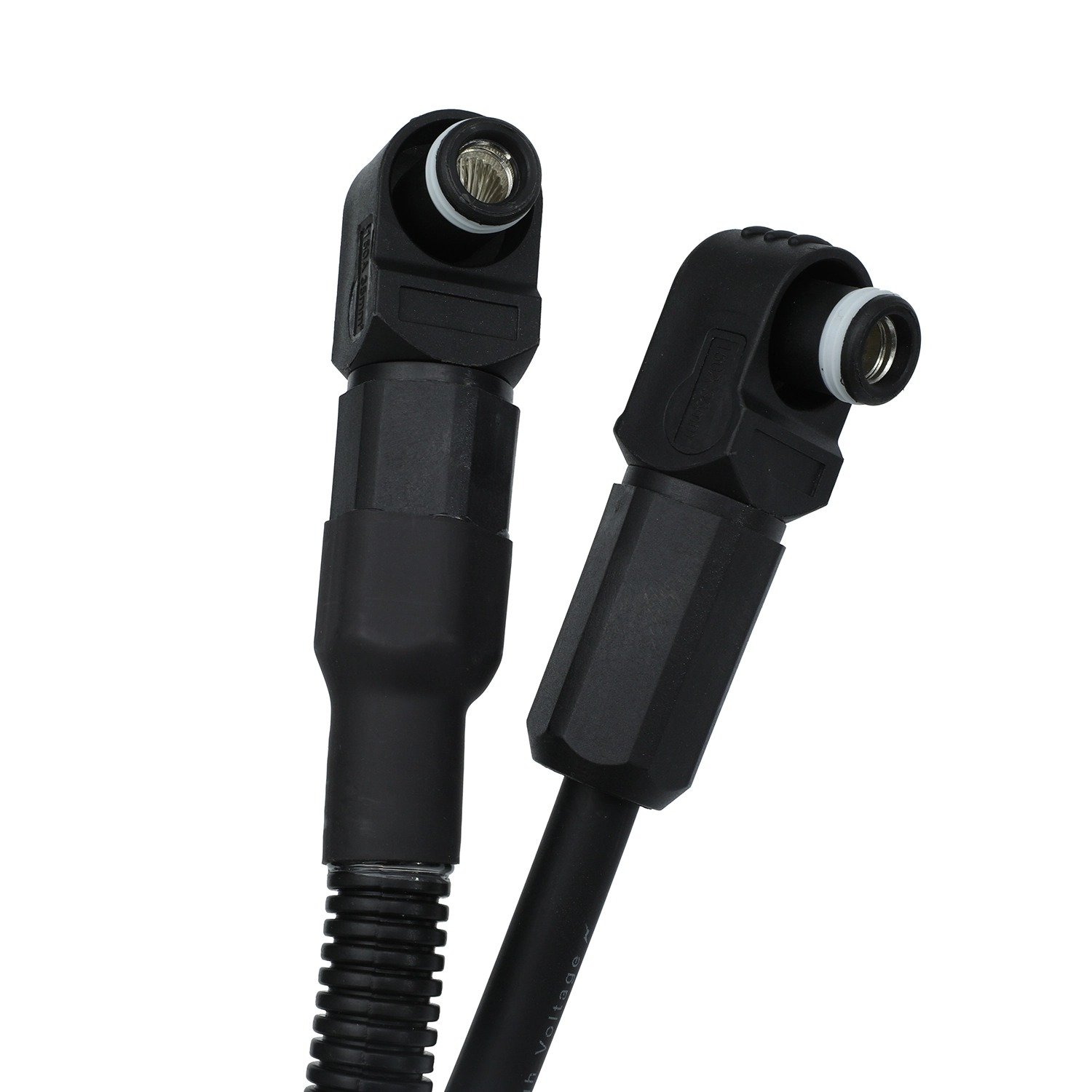

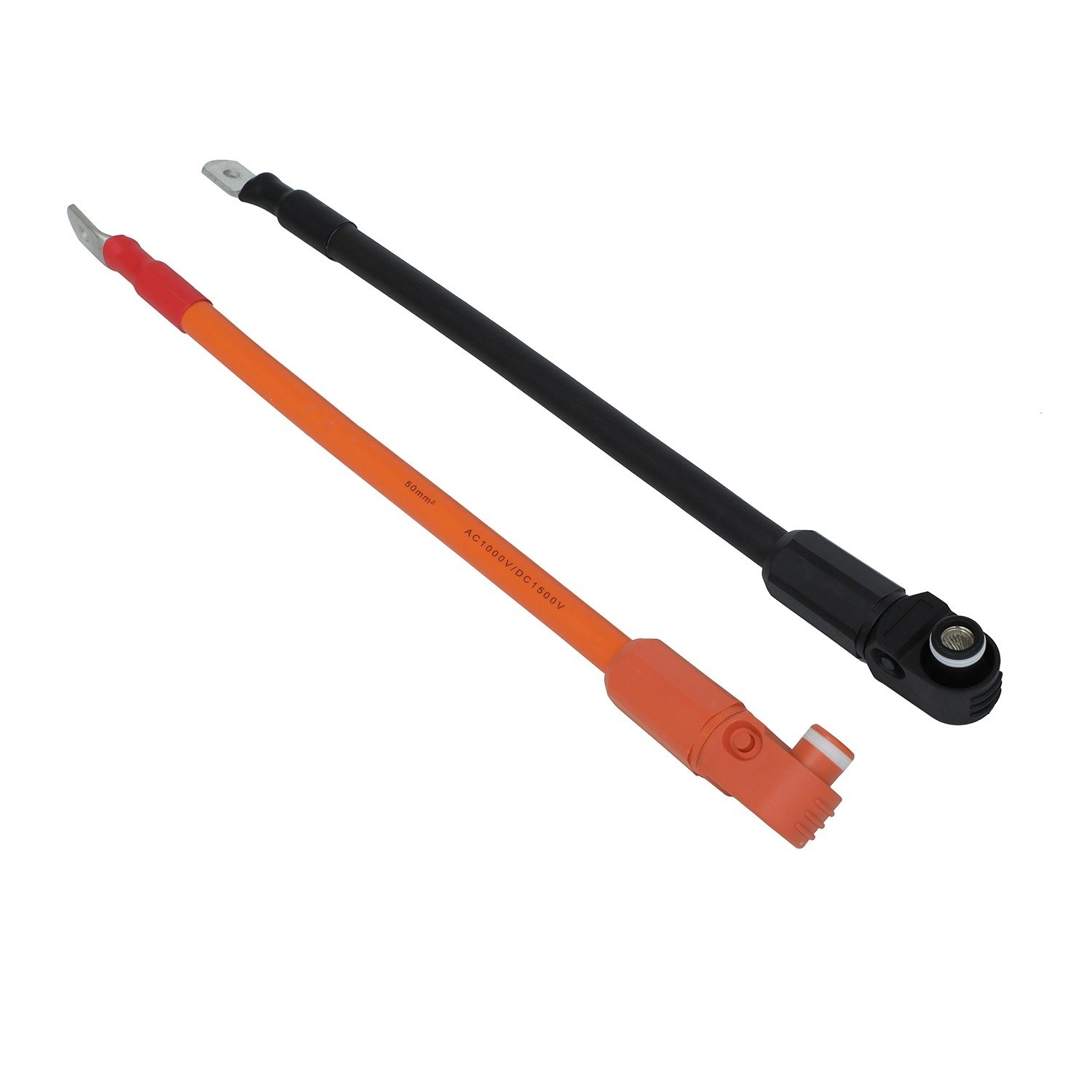

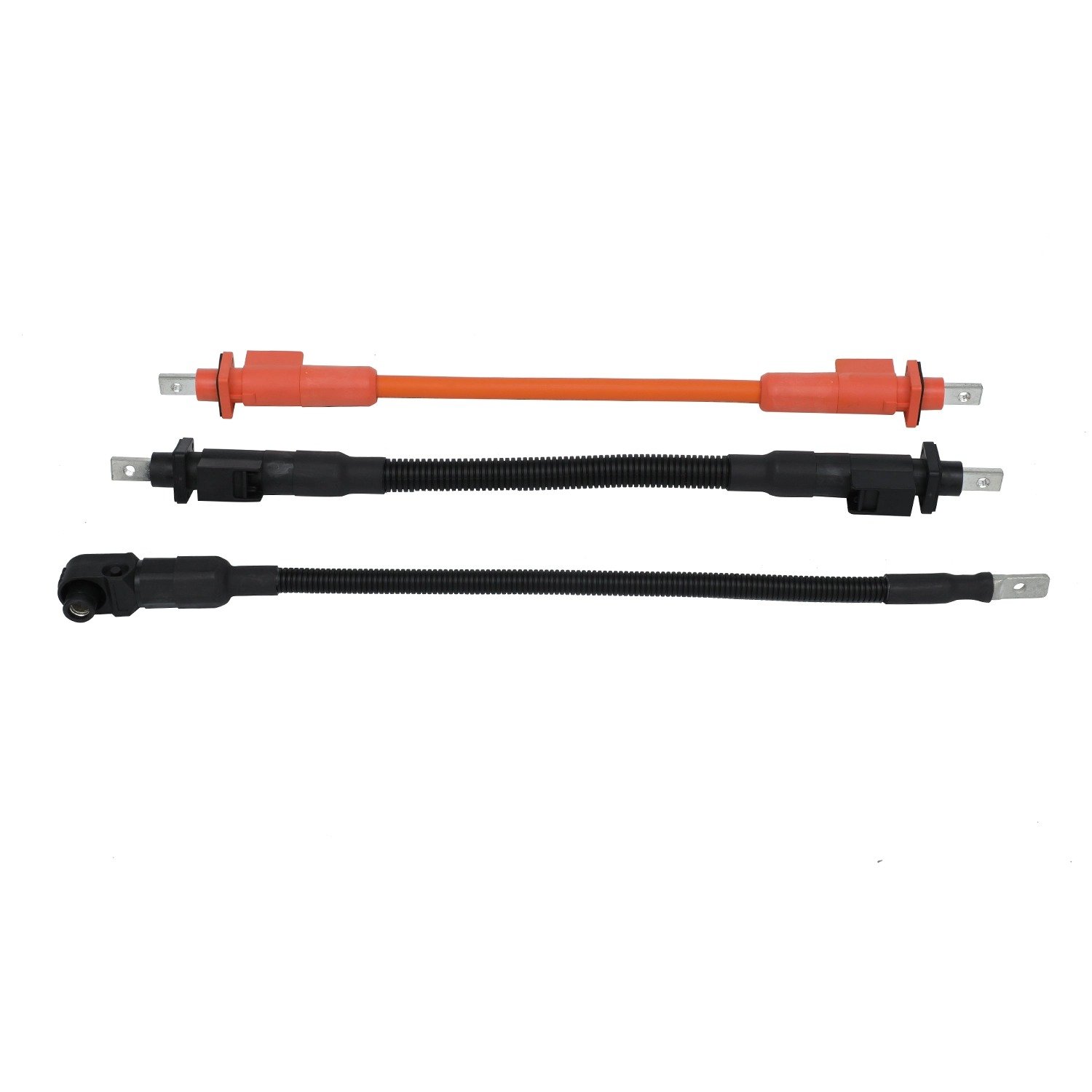

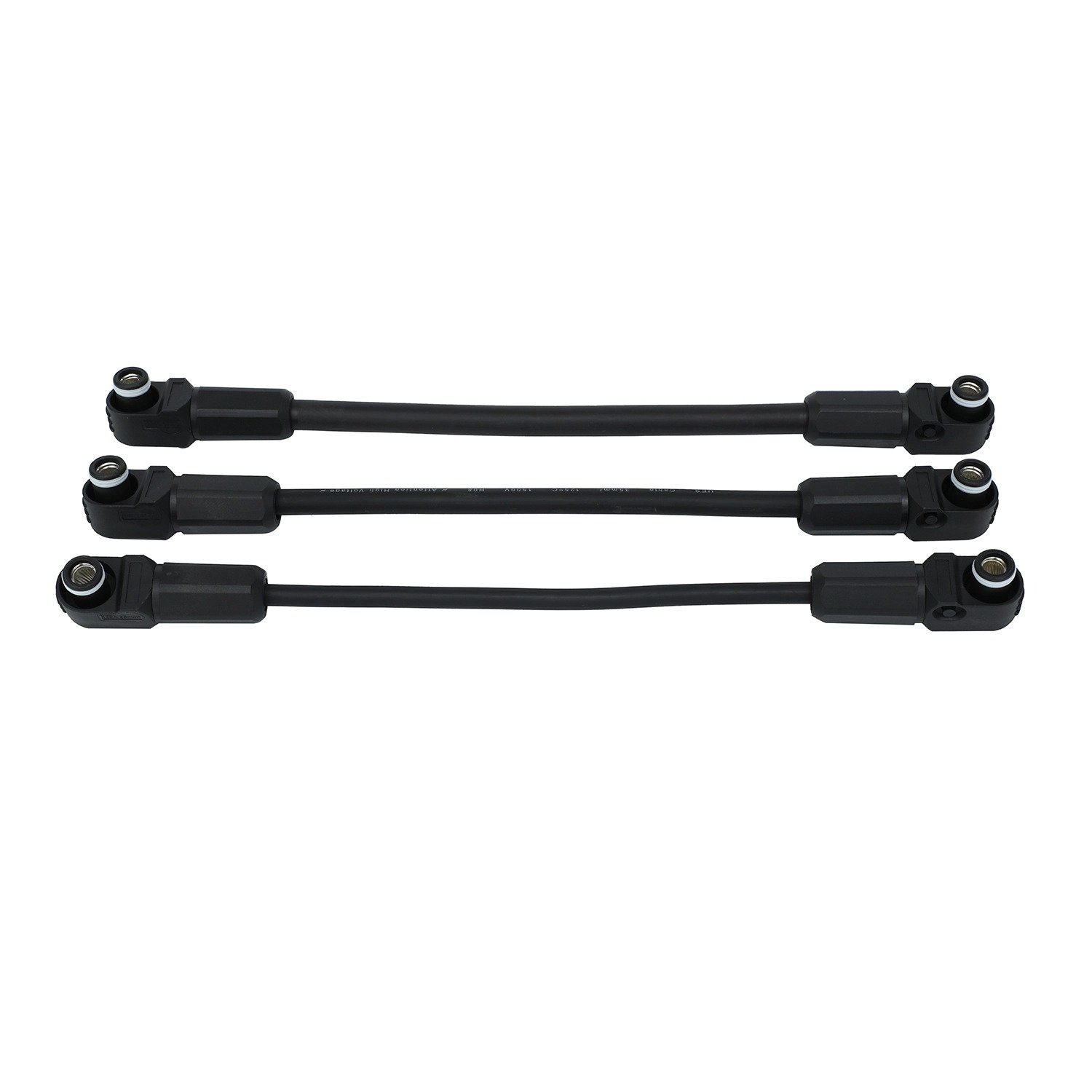

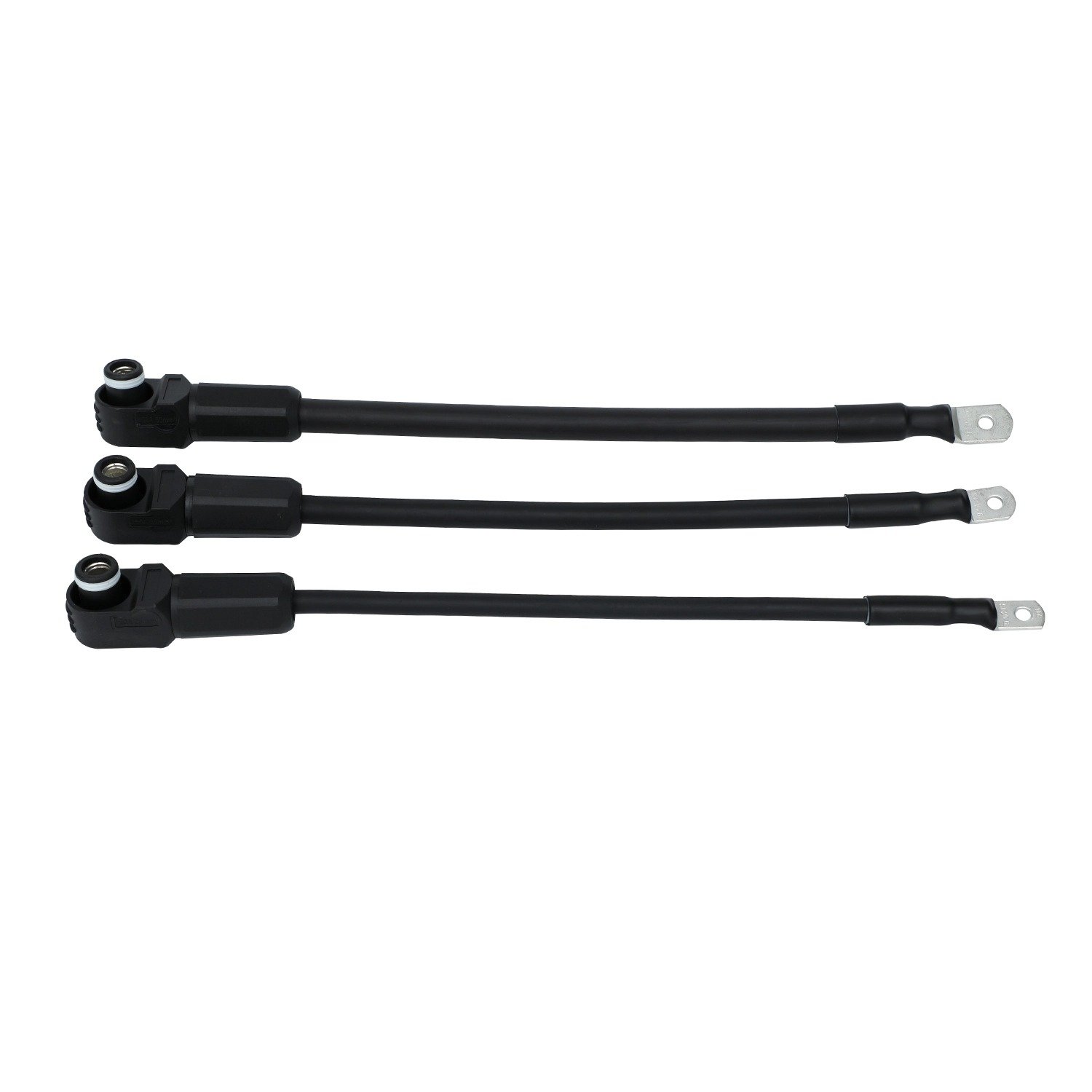

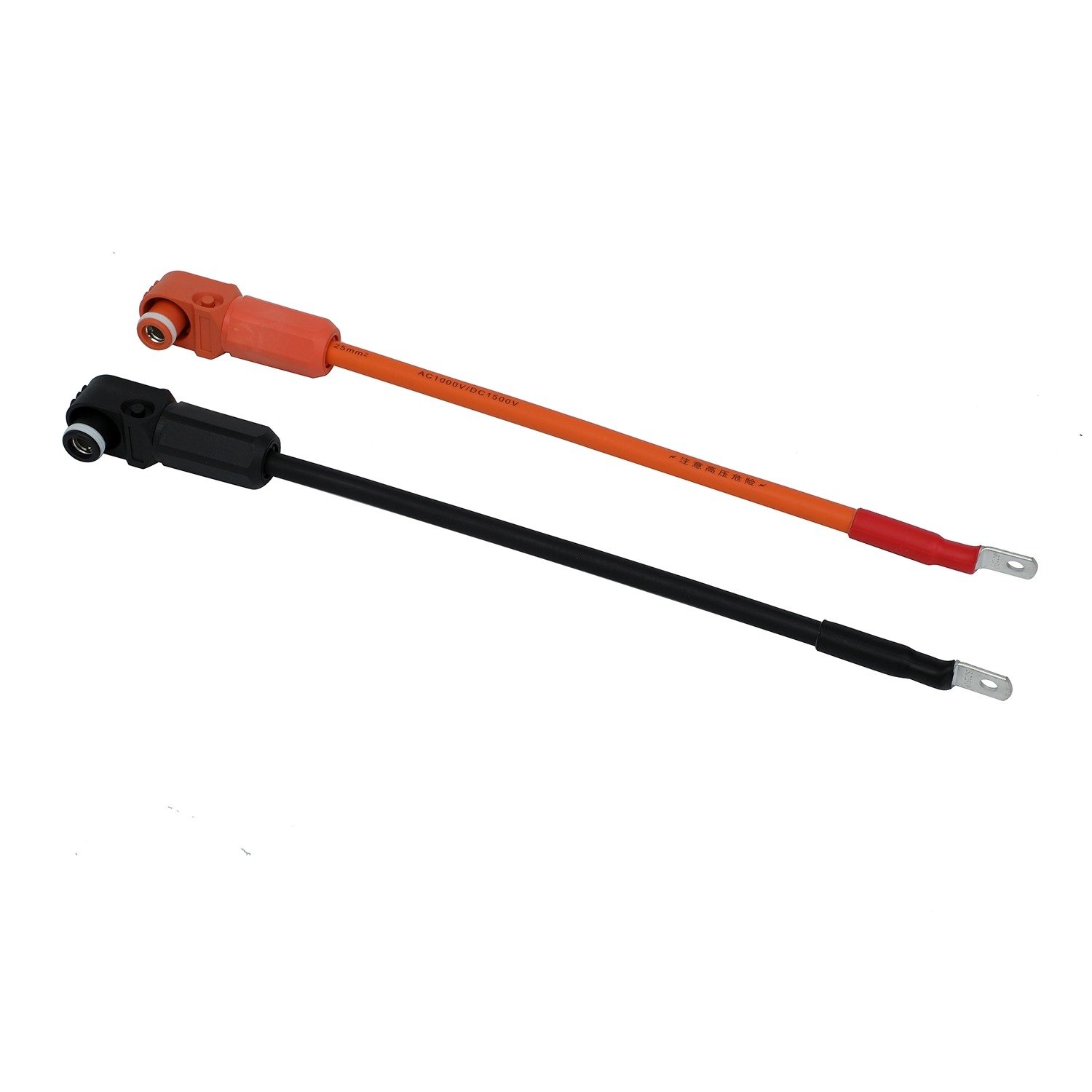

Energy Storage Cable 8 mm 200A–300A | IP67 Plug & Socket for ESS

Energy Storage Cable 8 mm 200A–300A | IP67 Plug & Socket for ESS

High-current 8 mm DC cable (200A/300A) with waterproof IP67 plug & socket. Rated for 300 V–2000 V, –40 °C–125 °C, ideal for solar energy storage and battery systems.

Category: Solar Cable Assembly

Product	Energy Storage Cable 8 mm 200A–300A \| IP67 Plug & Socket for ESS
Plug/Socket	Rated Current	60A~600A
	Rated Voltage	300V~2000V
	Operating Temp.	-40℃~125℃
Wire	Model	NSGAFÖU Rubber Wire, UL1015, UL10269, UL11627, UL3321, UL3271, etc.
	Size	1mm2~120mm2
Lug/Terminal	Model	SC1.5~SC120
	Applicable Wire Range	1mm2~120mm2
Crrugated Pipe	Optional
Features	IP67 Waterproof, Flame Retardant, High Temperature Retardant
	Touch Proof, Safe Handling, Durable Design, Reliable Connection
	Quick Lock, Press-to-Release Design, High Pressure Resistance
Application	Solar Energy Storage System(ESS)
	Energy Storage Cabinet, Battery Pack, Battery Storage Tank
	Energy Storage Converter, Power Energy Storage System
Verification	UL, VDE, CCC, ISO 9001, IATF 16949, RoHS, REACH, etc.
OEM	Welcomed

Plug/Socket Model

Plug Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 60A，100A，120A，150A，200A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC1000V, Resistance Value≥1000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

1_00

Socket Datasheet

1. Material

Shell: PA66+30%GF

Electrical Copper Row: Brass, Sliver-plated

2. Electrical Performance

Rated Current: 100A, 150A, 200A, 250A, 350A

Rated Voltage: DC690V

Impulse Withstand Voltage: AC5000V, Leakage≤1mA

Insulation Resistance: DC2500V, Resistance Value≥2000MΩ

3. Operating Environment

Operating Temp.: -40℃~125℃

Operating Humidity: 5%~95%RH

Flame Resistance: UL94 V-0

Salt Spray Test: 48H

Wire Model

Model	Size	Rated Voltage	Rated Temperature	Insulation	Conductor
UL1015	20~2/0AWG	600V	105ºC	PVC	Tinned or Bare, Stranded or Solid Copper
UL10269	20~2/0AWG	1000V	105ºC	PVC
UL11627	20~2/0AWG	2000V	105ºC	PVC
UL3271	20~2/0AWG	600V	125ºC	XLPE
UL3321	20~2/0AWG	600V	150ºC	XLPE
NSGAFÖU	1.5~120mm²	1.8/3KV	-40~90ºC	Rubber

Lug/Terminal Model

Model	Wire Range A.W.G.(mm2)	Stud Size (mm)		Material
Model	Wire Range A.W.G.(mm2)	Min.	Max.	Cu
SC1.5	12AWG (1.5mm2)	4.3	6.4
SC2.5	14AWG (2.5mm2)	4.3	8.4
SC4	12AWG (4mm2)	4.3	8.4
SC6	10AWG (6mm2)	4.3	8.4
SC10	8AWG (10mm2)	4.3	13
SC16	6AWG (16mm2)	4.3	10.5
SC25	4AWG (25mm2)	4.2	10.5
SC35	2AWG (35mm2)	6.4	10.5
SC50	1/0AWG (50mm2)	5.3	13
SC70	2/0AWG (70mm2)	5.3	13
SC95	3/0AWG (95mm2)	6.4	15
SC120	4/0AWG (120mm2)	6.4	17
