| Product | Solar Extension Cable PV Wire for Inverter Panel | ||||||
| Connector | Cable Connector or Panel Mount Connector | ||||||
| Wire | Photovoltaic Wire, Double Insulated and Halogen-free | ||||||
| Rated Voltage | 1KV/2KV | ||||||
| Rated Temp. | -40℃, 105℃ Dry and 90℃ Wet | ||||||
| Configuration | Male to Male, Male to Female, Female to Female | ||||||
| Features | IP67 or IP68 Waterproof, Flame Retardant, Reliable Connection, UV Retardant | ||||||
| Color & Length | Based on customer’s requirements | ||||||
| Custom/OEM | Customization based on your ideas, sample or specification | ||||||
| Testing | 100% electrical performance tested before delivery | ||||||
| MOQ | Trial order or small quantity order can be negotiated | ||||||
| Verification | UL, ISO 9001, IATF 16949, RoHS, REACH, etc. | ||||||
| Application | Solar Panel Modules, Rapid Shutdown, Solar Inverter, Solar UPS, Solar Cable, Combiner Box, Solar Junction Box, etc. | ||||||

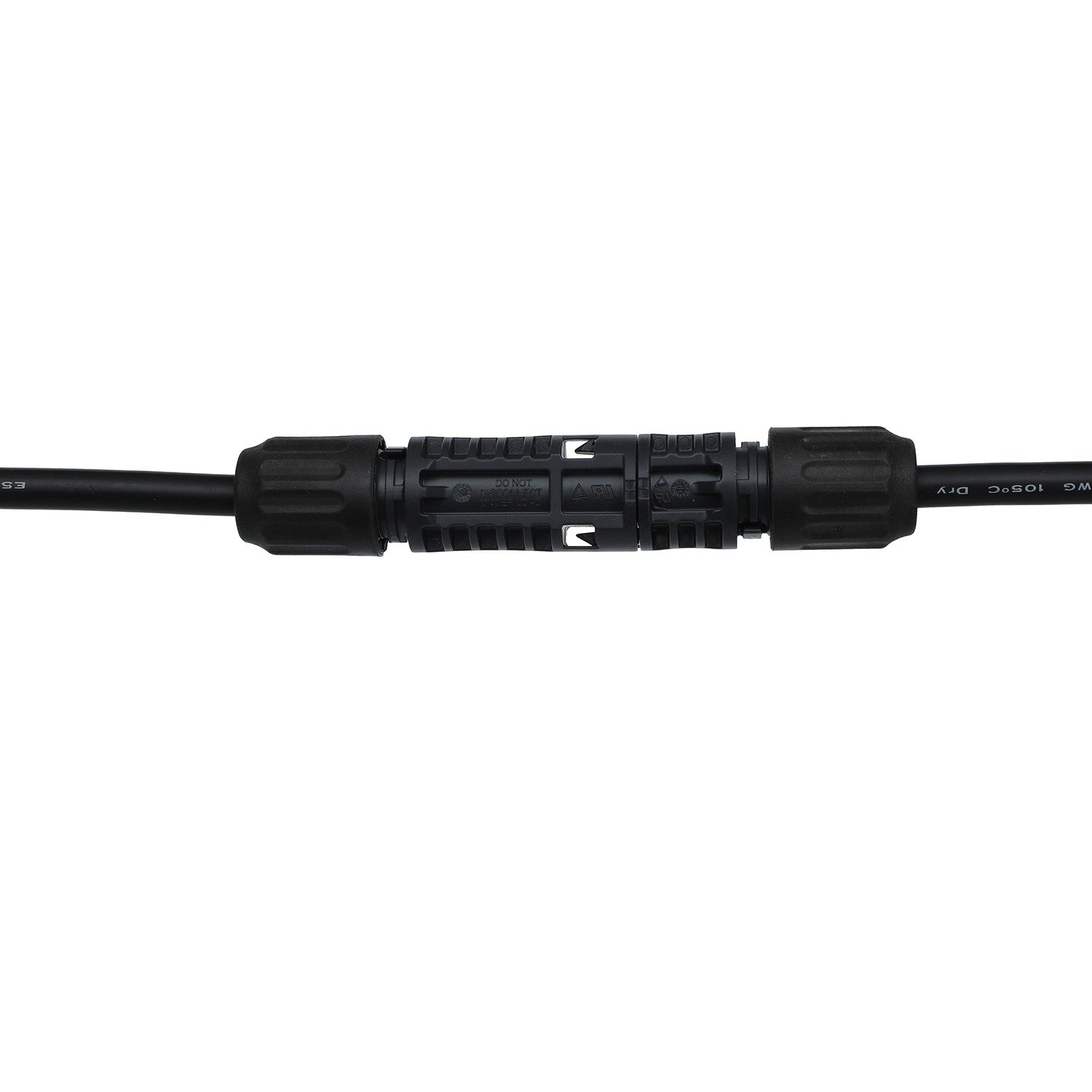

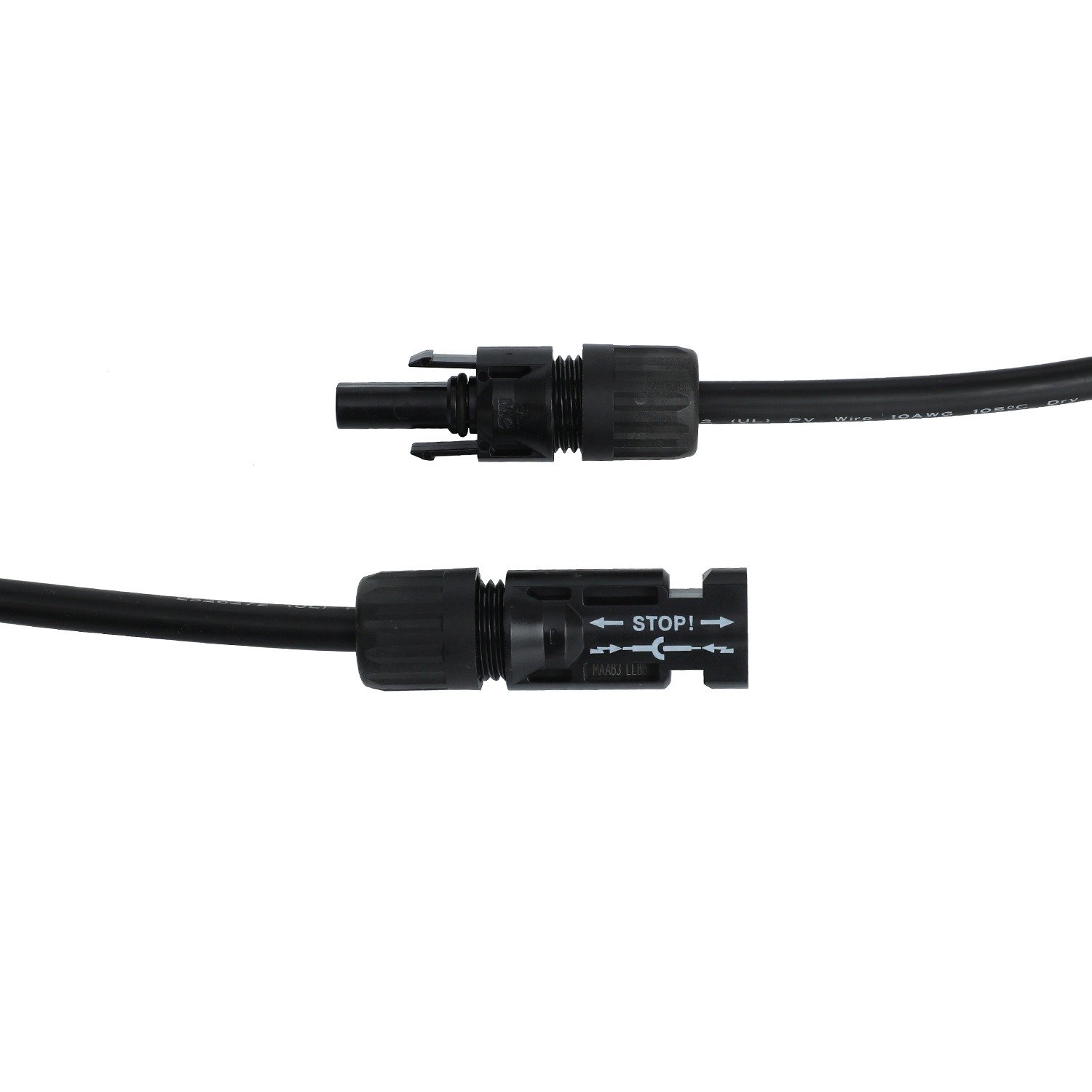

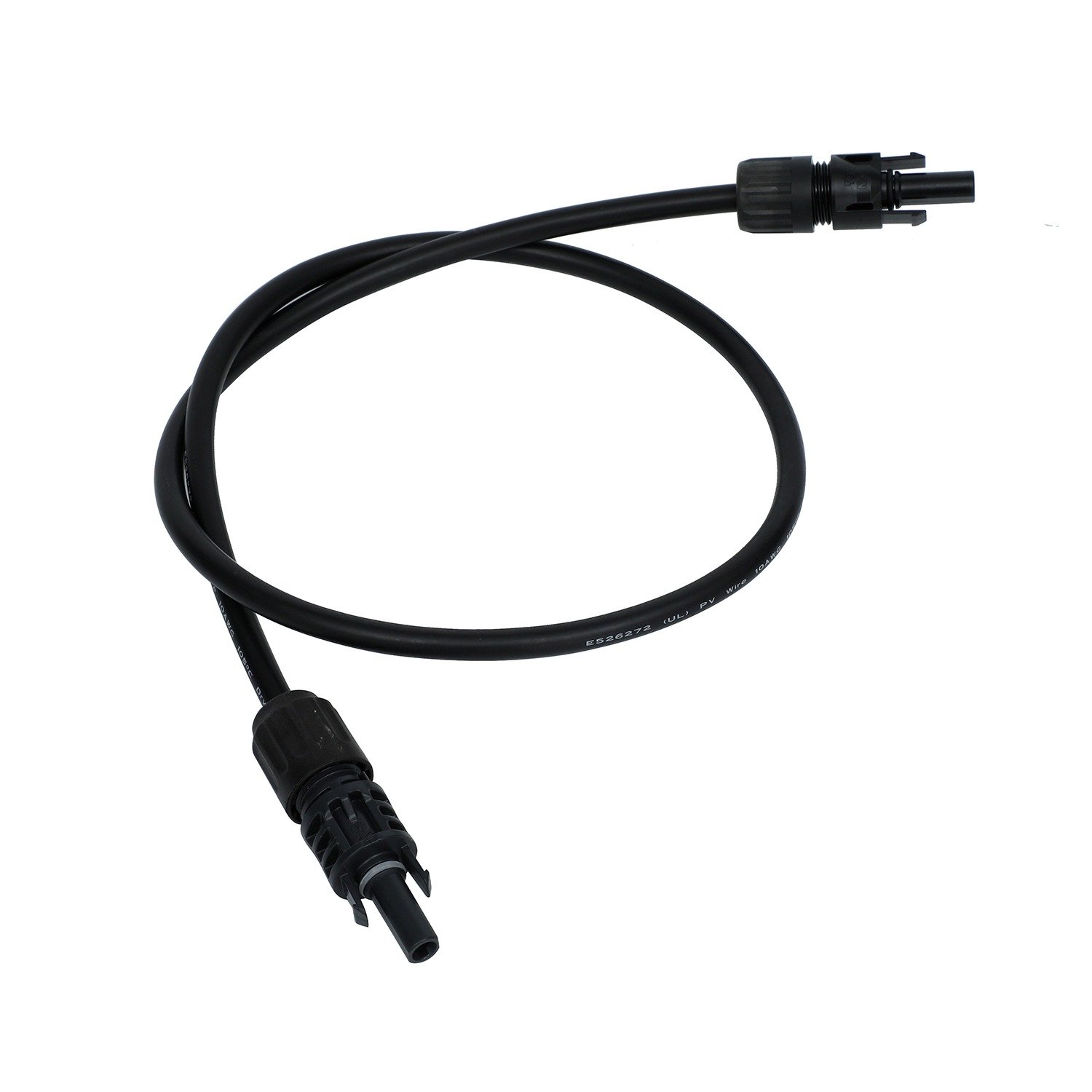

Solar Cable Plug Wire for Inverters & Panel Jumper Cable
Durable and efficient solar cable plug wire for photovoltaic systems. Compatible with inverters and solar panel arrays, providing reliable power transfer and easy installation. Ideal for clean energy setups.
Wire SPEC
| Conductor | Insulation | Sheath | ||||
| AWG | Construction (No./mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
| 8 | 165 | 0.254 | 1.14 | 6.20 | 0.762 | 8.10 |
| 10 | 105 | 0.254 | 1.14 | 5.50 | 0.762 | 7.20 |
| 12 | 65 | 0.254 | 1.14 | 4.75 | 0.762 | 6.30 |
| 14 | 41 | 0.254 | 1.14 | 4.20 | 0.762 | 5.80 |
| ※The above datasheet is for reference only, please refer to the final specification. | ||||||
